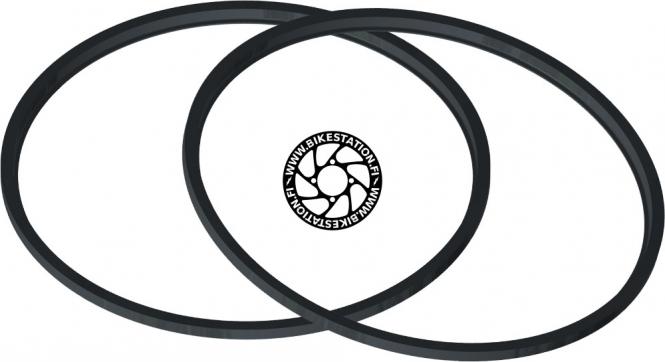

Rohloff SPEEDHUB 500/14 laipantukirengas

Zoom

Rohloff SPEEDHUB 500/14 laipantukirengas

Malli #: R_SH_500_14_Stutzring

Ei arvosteluja

Valitse muuttuja

29,95 € *

Tuotekuvat

Kuvaus

For Rohloff SPEEDHUB 500/14 Hubs.
Rings must be fitted to each spoke flange before lacing wheels. Especially suited to Touring bikes, Tandem and Cargo bikes.
The hub flange support rings must always be fitted when re-lacing a wheel following a flange failure.
These rings prevent total loss of all spoke tension even if the aluminum flange were to fail.

The SPEEDHUB shell, in particular the flange has been changed during the running production series and thus one must calculate whether two identical or different rings need to be mounted.

SPEEDHUBs with a serial number before those listed below will have identical flanges and thus require two identical size flange rings = Art. #8523.

196922 silver - 32-hole
198454 silver - 36-hole
196521 black - 36-hole
196713 black - 32-hole
197520 red - 32-hole
197980 red - 36-hole
Red powdercoated hubs aren’t compatible with the hub Flange Support Rings.

SPEEDHUBs with a serial number after those listed above are produced with a higher flange on the hub-cap side which will therefore require two different size flange rings = Art. #8524.

An distinctive feature is the labeling "Made in Germany" that is laser etched into the hub shell.

"Made in Germany" - labeling underlined = Art. #8524 = 1 x small ring, 1 x large ring (for the hub-cap side which is grooved for identification purposes.

"Made in Germany" - labeling not underlined = Art. #8523 = 2 x small rings.
